ODM OEM Multilayers Automative PCB Assembly Green Solder Mask FR4 Material SMT Printed Circuit Board
Automotive PCB Assembly Capacity
The capacity of automotive PCB assembly can vary depending on the specific capabilities of the assembly facility and the requirements of the automotive industry. Automotive PCB assembly services typically have the capability to handle various aspects, including:
High-Volume Production: Automotive PCB assembly often involves high-volume production to meet the demands of the automotive industry. Assembly facilities with high-capacity production lines, automated equipment, and optimized workflows can handle large-scale production requirements efficiently.
Surface Mount Technology (SMT) Assembly: Surface mount technology is commonly used in automotive PCB assembly due to its efficiency and ability to handle high component densities. Assembly services should have the capability to handle SMT assembly processes, including pick-and-place machines, solder paste application, and reflow ovens.
Through-Hole Assembly: While the automotive industry has shifted towards surface mount technology, some automotive applications still require through-hole components. Automotive PCB assembly services should have the capability to handle through-hole assembly processes, including wave soldering or selective soldering.
Multi-Layer PCB: Automotive electronic systems often require multi-layer PCBs to accommodate complex circuitry and high-density components. Assembly facilities should have the capability to handle the fabrication and assembly of multi-layer PCBs, including the lamination process, via drilling, and plating.
Quality Control and Testing: Automotive PCB assembly services should have robust quality control and testing processes in place to ensure the reliability and functionality of the assembled PCBs. This can include automated optical inspection (AOI), in-circuit testing (ICT), functional testing, and environmental testing to meet automotive industry standards.
Component Sourcing and Traceability: Automotive PCB assembly services should have established relationships with reliable component suppliers to source automotive-grade components. They should also maintain detailed records and traceability of component sourcing to ensure compliance with automotive industry standards and facilitate product recalls or component replacement if necessary.
Compliance with Automotive Standards: Automotive PCB assembly services should adhere to specific automotive industry standards and certifications, such as International Automotive Task Force (IATF) 16949.Compliance with these standards ensures that the assembled PCBs meet the required quality, safety, and reliability standards for automotive applications.
Communication PCB Assembly Parameters
| Capacity | Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |
Automotive PCB Assembly Parameter
| Layers | 4 |
| Material | FR-4 |
| Board Thickness | 1.2mm |
| Copper Thickness | 1oz |
| Surface Treatment | ENIG 1U" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
Types of Automotive PCB Assembly
Sky win offers all types of automotive PCBs including:
Rigid PCBs
Flexible PCBs
Rigid-Flex PCBs
HDI PCBs
Metal Core PCBs
Ceramic Substrate PCBs
Heavy Copper PCBs
Get a Quote for your Automotive PCB
Please supply us your files in Gerber,send us your BOM, quantity information and the turn around time you need.
We will run a DFA/DFM analysis on your documents and get back to you with our report and quote.
PCBA Case
Product Tags:
|
|

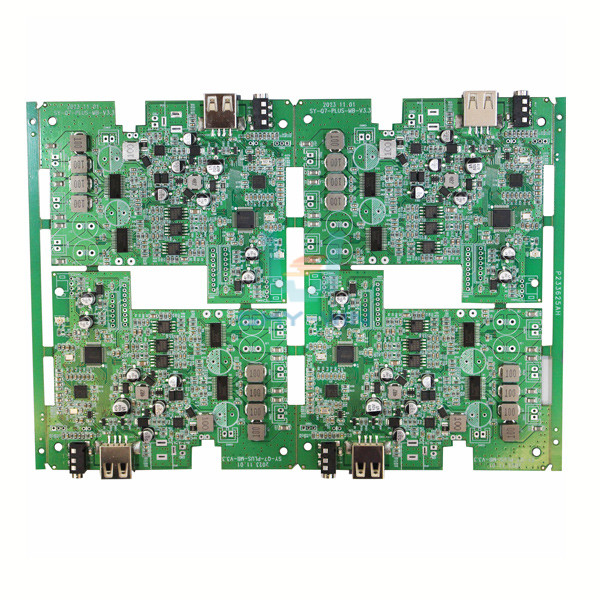

OEM Multilayers Automative PCB Assembly Green Solder Mask FR4 Material SMT Printed Circuit Board Images
|
