IATF16949 Green Soldermask With FR4 Automotive Printed Circuit Board Assembly
Automotive PCB Assembly
Autonomous driving and new energy vehicles have greatly increased the use of automotive printed circuit boards.
With the gradual transition of traditional cars to autonomous vehicles and the promotion of new energy vehicles supported by policies, in order to adapt to the application of new technologies, the demand for automotive PCB electronic control boards continues to increase, and the use of automotive PCB boards is becoming more and more widespread. It is estimated that with the improvement and popularization of technology in the future, the level of automobile intelligent system will be further improved.
Automotive PCB Assembly Capacity:
| Capacity | Double Sided: 12000 sq.m / month
Multilayers: 8000sq.m / month |
| Min Line Width/Gap | 4/4 mil (1mil=0.0254mm) |
| Board Thickness | 0.3~4.0mm |
| Layers | 1~20 layers |
| Material | FR-4, Aluminum, PI |
| Copper Thickness | 0.5~4oz |
| Material Tg | Tg140~Tg170 |
| Max PCB Size | 600*1200mm |
| Min Hole Size | 0.2mm (+/- 0.025) |
| Surface Treatment | HASL, ENIG, OSP |

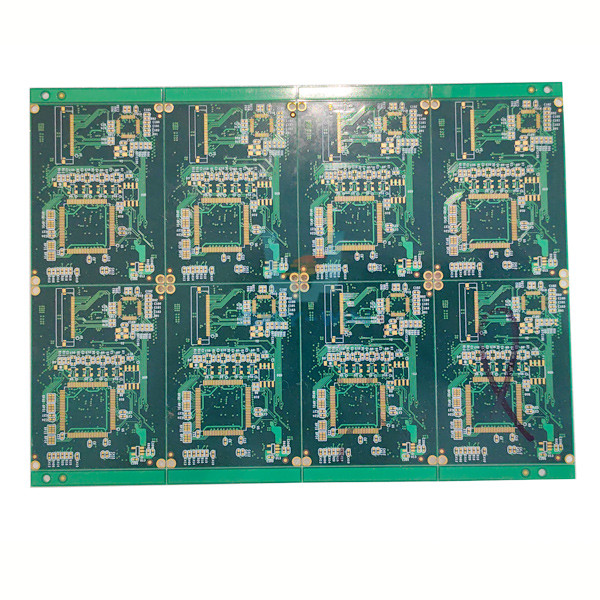

Automotive PCB Assembly Parameter
| Layers | 4 |
| Material | FR-4 |
| Board Thickness | 1.2mm |
| Copper Thickness | 1oz |
| Surface Treatment | ENIG 1U" |
| Soldmask & Silkscreen | Green & White |
| Quality Standard | IPC Class 2, 100% E-testing |
| Certificates | TS16949, ISO9001, UL, RoHS |
FAQ
Q1:Can you do PCB or circuit design?
A: Yes, we have design team including software hardware and structure engineers. We cansupplycustomized design service. Give your idea we can make it true
Q2:What is needed for PCB quotation?
A: Please provide Quantity, Gerber file and specification like material, surface finish treatment.copper thickness, board thickness, soldermask color and silkscreen color and other special specifications
Q3: What's your minimum of quantity(MoQ) ?
A: There is no MOQ We are able to handle small as well as large volume production with flexibility
Q4: Are my files safe?
A: Your files are held in complete safety and security. All documents from customers are never sharedwith any third parties. We are willing to sign NDA effect and promising to keep customers data in highconfidentiallevel.
Q5: How to calculate the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let usknow if you need us to quote you the shipping cost
Q6: Can we inspect quality during production?
A. Yes, we are open and transparent on each production process
Q7: ls it possible you could offer sample?
A: Yes, we can custom samples for your testing before mass production.
Q8: What other service do you have?A: We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provideprogramming,testing, assembly service
PCBA Case
